OUTDOOR ELECTRICAL JUNCTION BOX for Awnings

We are so confident of the quality of this product, that we offer:- A unique, no-quibble 100% money back guarantee!!

Waterproof and dustproof IP66/68 junction box, anti-UV, sunlight protection and rain protection; UL94 V2 grade fire retardant

Suitable for fast outdoor lighting and external wiring connections

For IP68 junction boxes, up to 4M depth in water for Max. 72 hours

Widely used in solar panel systems, outdoor LED lamps and electrical wire connecting.

Make wiring easy, convenient and safe

Screws included

Certification: VDE, UL, CQC, ROHS, CE

IP68 3-pin M16 (4-8mm):

Model: M16, 3Pin

IP rating: IP68

Voltage: EN 400V Max; Ampere: EN 17.5A

Wiring Capacity: 0.5mm²-1.5mm²

Outer Cable Diameter: 3.5-10mm

IP68 3-pin T Shape (4-8/8-12/10-14mm):

Cores: 2P/3P/4P/5P

Electric Current: 24A, Voltage: MAX 450V

Size:106.77*95.93mm

Cable diameter: 9-12mm

Waterproof heads:3

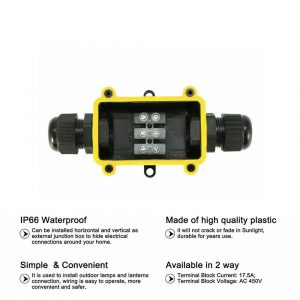

IP66 2-way (3-6.5mm):

IP66 waterproof cable connectors with a diameter of 3-6.5mm

Outer size: 71.5x35x23mm, inner size: 47x28x18mm

Electric Current: 17.5A, Voltage: 450V Max

Cable diameter: Ø 3mm – 6.5mm

Terminal blocks: 2×1.5 sq.mm. cores in each terminal.

Includes PA10-3P 450V H Type Screw Terminal Cable Connector

IP66 3-way (3-6.5mm):

IP66 waterproof cable connectors with a diameter of 3-6.5mm

Outer size: 71.5x35x23mm, inner size: 47x28x18mm

Electric Current: 17.5A, Voltage: 450V Max

Cable diameter: Ø 3mm – 6.5mm

Terminal blocks: 3×1.5 sq.mm. cores in each terminal.

Includes PA10-3P 450V H Type Screw Terminal Cable Connector

IP68 2-way (4-8mm):

IP66 waterproof cable connectors PG9 cable with a diameter of 4-8mm

Outer size: 114x42x29mm, inner size: 61x34x22mm

Electric Current: 41A, Voltage: 450V Max

Cable diameter: Ø 4mm – 8mm

Terminal blocks: 2×1.5, 3 x 1.5 sq.mm. cores

Includes PA10-3P 450V H Type Screw Terminal Cable Connector

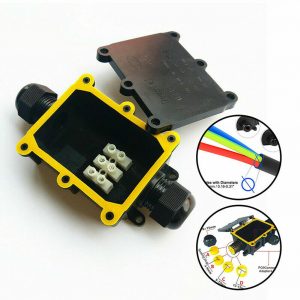

IP68 3-way (9-12mm):

IP68 waterproof cable glands for cable in a diameter of 9~12mm

Outer size: 130x110x40mm, inner size: 72x49x32mm

Electric Current: 41A, Voltage: 450V Max

Cable diameter: Ø4~9mm/9~12mm/12-15mm

Terminal blocks: 3 x 1.5, 3×2.5, 4×2.5 sq.mm. cores

Includes PA10-5P 450V H Type Screw Terminal Cable Connector

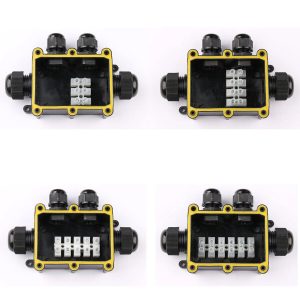

IP68 4-way (9-12mm):

IP68 waterproof cable glands for cable in a diameter of 4-9mm, 9~12mm, 12-15mm

Outer size: 130x110x40mm, inner size: 72x49x32mm

Electric Current: Max 41A, Voltage:Up To 450V (Works fine at UK Mains Voltage)

Cable diameter: Ø4~9mm/9~12mm/12-15mm

Terminal blocks: 3 x (1.5-2.5) sq.mm. cores in each terminal

Includes PA10-6P 450V H Type Screw Terminal Cable Connector

IP68 5-way (9-12mm):

IP68 waterproof cable gland PG9/PG13.5/PG19 for cable in a diameter of 9~12mm

Outer size: 130x110x40mm, inner size: 72x49x32mm

Electric Current: 41A, Voltage: 450V

Cable diameter:9~12mm

Terminal blocks: 3 x 1.5, 3×2.5, 4×2.5 sq.mm. cores

Includes PA10-7P 450V H Type Screw Terminal Cable Connector

IP68 6-way (9-12mm):

IP68 waterproof cable gland PG9/PG13.5/PG19 for cable in a diameter of 4~9mm/9~12mm/12-15mm

Outer size: 130x110x40mm, inner size: 72x49x32mm

Electric Current: 41A, Voltage: 450V

Cable diameter:9~12mm

Terminal blocks: 3 x 1.5, 3×2.5, 4×2.5 sq.mm. cores

Includes PA10-7P 450V H Type Screw Terminal Cable Connector

IP44 3-pin (7 & less mm):

Outer size: 42.4x27x9.3mm

Certification: VDE, UL, CQC, ROHS, CE

Electric Current: 10A, Voltage: 250V Max

Cable diameter: 7mm and less

Terminal blocks: 2C*3C (0.5-1.5) sq.mm. cores in each terminal

IP54 3-pin (7 & less mm):

Outer size: 42.4x27x9.3mm

Certification: VDE, UL, CQC, ROHS, CE

Electric Current: 10A, Voltage: 250V Max

Cable diameter: 7mm and less

Terminal blocks: 2C*3C (0.5-1.5) sq.mm. cores in each terminal



number-of-ports	IP68 3-pin M16 (4-8mm), IP68 3-pin T (4-8/8-12/10-14mm), IP66 2-way (3-6.5mm), IP66 3-way (3-6.5mm), IP66 2-way (4-8mm), IP68 3-way (5-9/9-12/12-15mm), IP68 4-way (5-9/9-12/12-15mm), IP68 5-way (5-9/9-12/12-15mm), IP68 6-way (5-9/9-12/12-15mm), IP44 3-pin (7 & less mm), IP54 3-pin (7 & less mm)
Maximum Input Current	24A
Voltage Conversion	N/A
Brand	SECURICAM UK
Output Voltage	N/A
Unit Type	Unit
Recommended Environment	Outdoor
MPN	waterproof-junction-box
Input Voltage	220 V
Smart Home Protocol	N/A
select-pack	1, 2, 3, 5, 6, 8, 10
Surge Energy Capacity	N/A
Features	N/A
Type	ip68 junction box
Number of Outlets	1
Unit Quantity	1
Smart Home Compatibility	N/A
Maximum Compatible Appliance Wattage	N/A
Plug Type	N/A
Resistance Properties	Waterproof
